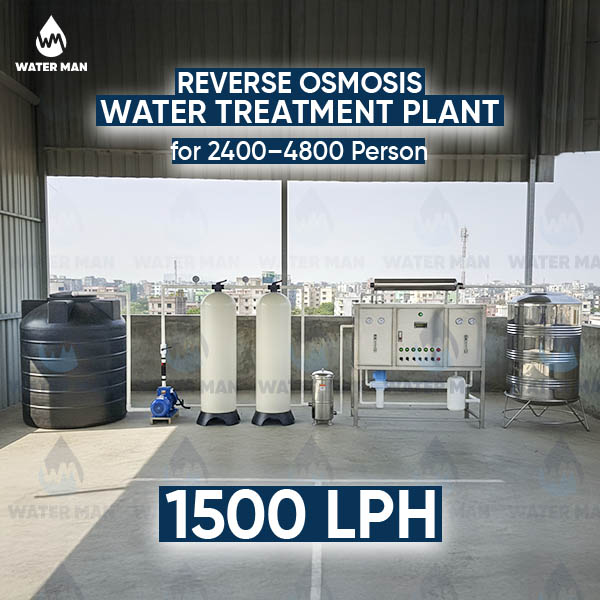

Reverse Osmosis (RO) Water Treatment Plant – 9000 GPD / 1500 LPH
Approx. Suitable for 2400–4800 Persons
Product Overview
This 9000 GPD (approximately 1500 LPH) RO Water Treatment Plant is engineered for locations where drinking water demand fluctuates heavily throughout the day, and a stable, high-output purification system is essential.
Instead of simply scaling up membrane count, this system emphasizes robust pre-treatment and flow stability, using a 20×72 (2072) FRP pressure vessel to handle higher inlet water loading. The larger vessel volume allows deeper filter media beds, ensuring consistent feed water quality, reduced pressure drop, and smoother long-hour operation.
The plant is ideally suited for industrial facilities, large mosques, residential labor housing, educational campuses, and public drinking water distribution points, serving approximately 2,400–4,800 users, depending on operating hours and per-person consumption.
Key Technical Specifications
Rated Output: 9000 GPD (≈ 1500 Liters Per Hour)
Intended Use: Drinking & cooking water
Coverage Capacity: Approx. 2400–4800 persons
Purification Technology: Reverse Osmosis (RO)
Pre-Treatment Vessel: FRP 20×72 (2072)
Salt (TDS) Rejection: Up to 95–98%
Typical Recovery: 40–50% (raw water dependent)
Operating Mode: Semi-automatic / Fully automatic
System Layout & Treatment Units
Pre-Treatment Section
Raw Water Feed Pump
Ensures steady flow and adequate pressure to the filtration units
Pressure Sand Filter – 2072 FRP Vessel
Removes turbidity, sand, silt, and suspended solids
Activated Carbon Filter (ACF)
Removes chlorine, odor, color, and organic contaminants
Essential for RO membrane protection
Micron Cartridge Filter (5–10 Micron)
Final fine filtration before RO membranes
RO Purification Section
High-Pressure RO Pump
Supplies required pressure for membrane separation
RO Membrane Housing with High-Rejection Membranes
Removes dissolved salts, heavy metals, bacteria, and viruses
Pressure Gauges & Flow Meters
Continuous monitoring of system performance
Post-Treatment & Storage
RO Product Water Storage Tank (capacity as per site requirement)
UV Sterilizer / Ozone Disinfection (Optional)
Final microbial safety barrier
Polishing Filter (Optional)
Enhances the taste and visual clarity of water
Working Principle
Raw water passes through sand and carbon filtration to stabilize turbidity and chemical load.
Pre-treated water is pressurized and fed to the RO membranes, where only pure water molecules pass through.
Treated permeate water is collected for consumption, while reject water carries away concentrated impurities.
Suitable Applications
Large factories & industrial units
Educational campuses & hostels
Mosques & religious complexes
Worker housing & labor camps
Residential colonies & community water points
Commercial food preparation zones
Key Advantages
High-volume, stable drinking water production
2072 FRP vessel ensures strong pre-treatment performance
Reduced membrane fouling and pressure fluctuations
Long membrane life and lower maintenance frequency
Consistent water quality during peak demand hours
Suitable for continuous institutional operation
Operation & Maintenance
Periodic backwash of sand and carbon filters
Cartridge filter replacement as per pressure drop
RO membrane life is typically 2–3 years
CIP cleaning based on permeate flow and pressure trend
Routine monitoring of TDS, pressure, and flow rates
Design & Selection Guidelines
Raw water testing (TDS, iron, hardness, chlorine, turbidity) is mandatory
Pre-treatment upgrades (iron removal/softener) may be required for difficult raw water
Final performance depends on feed water quality and operating conditions
Standard Supply Scope
Skid-mounted RO plant with MS powder-coated structure
2072 FRP pressure vessel with graded filter media
RO membranes with SS housing
High-pressure pump, gauges & flow meters
Cartridge filter housing & UV system (if included)
Electrical panel, valves, piping & fittings
Installation, commissioning & operator training
