Iron Removal Water Treatment Plant – 4000 LPH (For 10–20 Family)

Iron Removal Water Treatment Plant – 4000 LPH (For 10–20 Families)

High-Capacity Iron Removal System for Residential & Commercial Applications

Product Overview

The 4000 LPH Iron Removal Water Treatment Plant is engineered to deliver a continuous and high-volume supply of iron-free, clear, and odor-free water for 10–20 families.
This system effectively treats iron-contaminated tube-well, borewell, or underground water, removing Iron (Fe), Manganese (Mn), Turbidity, Color, Bad Odor, and Suspended Impurities.

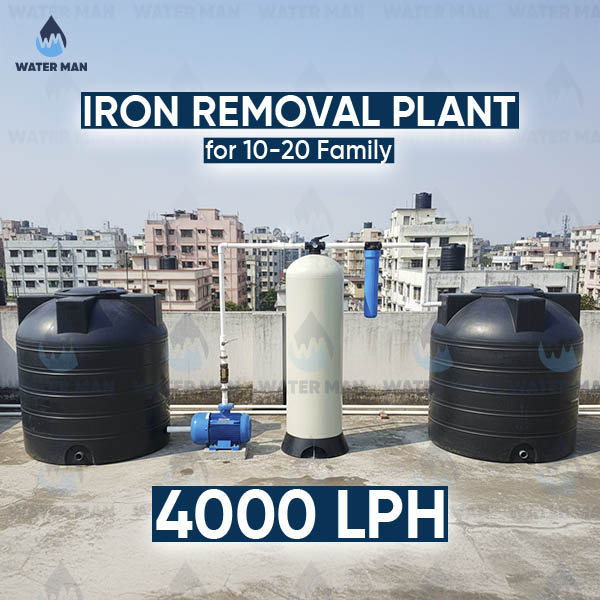

Built with a heavy-duty 20×72 (2072) FRP Pressure Vessel, the plant ensures maximum filtration capacity, extended contact time, and superior iron removal efficiency, making it ideal for apartments, housing complexes, hostels, hotels, and light commercial facilities.

Technical Specifications

Capacity & Flow Rate

• Production Capacity: 4000 Liters Per Hour

• Recommended Usage: 10–20 Families

• Operating Pressure: 3–6 kg/cm²

Filtration System Components

1. Raw Water Feed Pump: Industrial-grade high-pressure pump

2. Air Injection / Oxidation System (Optional): Enhances iron and manganese oxidation

3. FRP Pressure Vessel: 20×72 (2072) – corrosion-free, heavy-duty construction

4. Multi-Layer Filtration Media:

   • Manganese Greensand / Birm Media

   • Quartz Sand

   • Activated Carbon

   • Graded Gravel Support Layer

5. Manual / Automatic Multiport Valve: Smooth and efficient backwash & rinse

6. Sediment Cartridge Filter: 5–10 Micron for final polishing

7. Piping & Fittings: Food-grade UPVC / CPVC / MS (as per design)

Build & Material Quality

• FRP Vessel: High-strength, rust-proof, and long service life

• Valve: Heavy-duty ABS / Brass / CI (industrial option)

• Filtration Media: Premium imported catalytic media

• Support Frame: MS Painted / SS (optional)

Filtration Performance

Efficiently removes:

• Iron (Fe)

• Manganese (Mn)

• Turbidity & suspended solids

• Yellowish/reddish discoloration

• Bad odor

• Rust, scale & organic impurities

Treated Water Quality:
✔ Crystal clear
✔ Odor-free
✔ Safe for drinking, cooking, bathing & all household use

Operation & Maintenance

• Easy manual or automatic backwash system

• Low operating and maintenance costs

• Long media lifespan with stable performance

• Designed for continuous operation

Ideal Applications

• 10–20 Family Residential Buildings

• Apartments & Housing Complexes

• Hostels & Dormitories

• Hotels & Guest Houses

• Restaurants & Commercial Kitchens

• Light Commercial & Institutional Use

Key Benefits

• High-output 4000 LPH capacity with 2072 FRP vessel

• Consistent flow with superior iron removal efficiency

• Prevents iron stains on tiles, sanitary fittings & utensils

• Protects pipelines, pumps, heaters & appliances

• Improves water quality, color & odor

• Durable, scalable & cost-effective solution
